Experienced Engineering Surveyors. Based In Perth, Servicing Western Australia
Zone 50 Engineering Surveys
Our Services Include

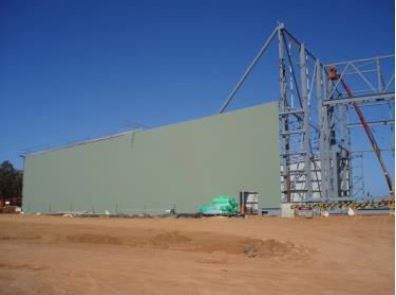

STRUCTURAL STEEL
Ensure your building is conforming to specification through precise foundation prep and dimensional control during erection.
Shimming and Gridlines
Column Verticality
Soleplate installation
Verification Reports
Monitoring Programs
Overhead Crane Rail Alignments

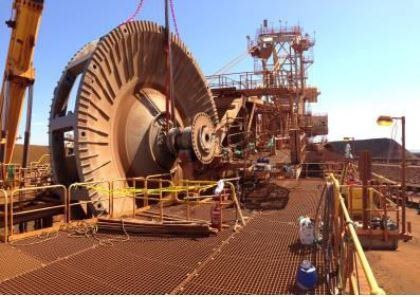

MECHANICAL ALIGNMENT
Millimeter precision mechanical alignment helps prevent excessive wear and prolongs materials handling equipment life.
Conveyor Component Alignment
Rolling Stock/Bogie Alignment
Car Dumpers / Apron Feeders
Stackers / Reclaimers
Monitoring Programs

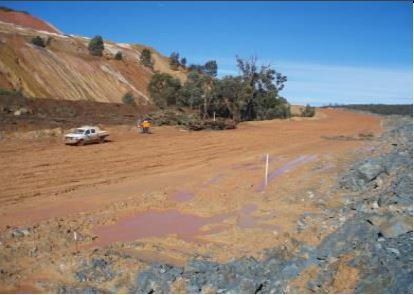

EARTHWORKS
Build your road “on line” and “on time”. When it matters, Zone 50 has the commitment to support the success of your project.
Volumetric Survey and Calculation Bill of quantity assessment Control Networks
Design Setting Out Bulk Earthworks Design Setting Out Utilities Services Machine Control Support
As-con Surveys and Conformance Reporting

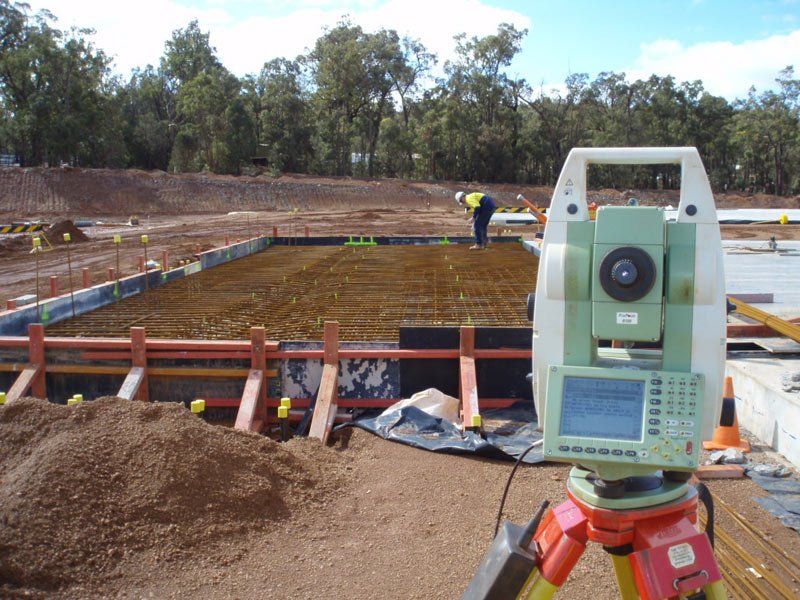

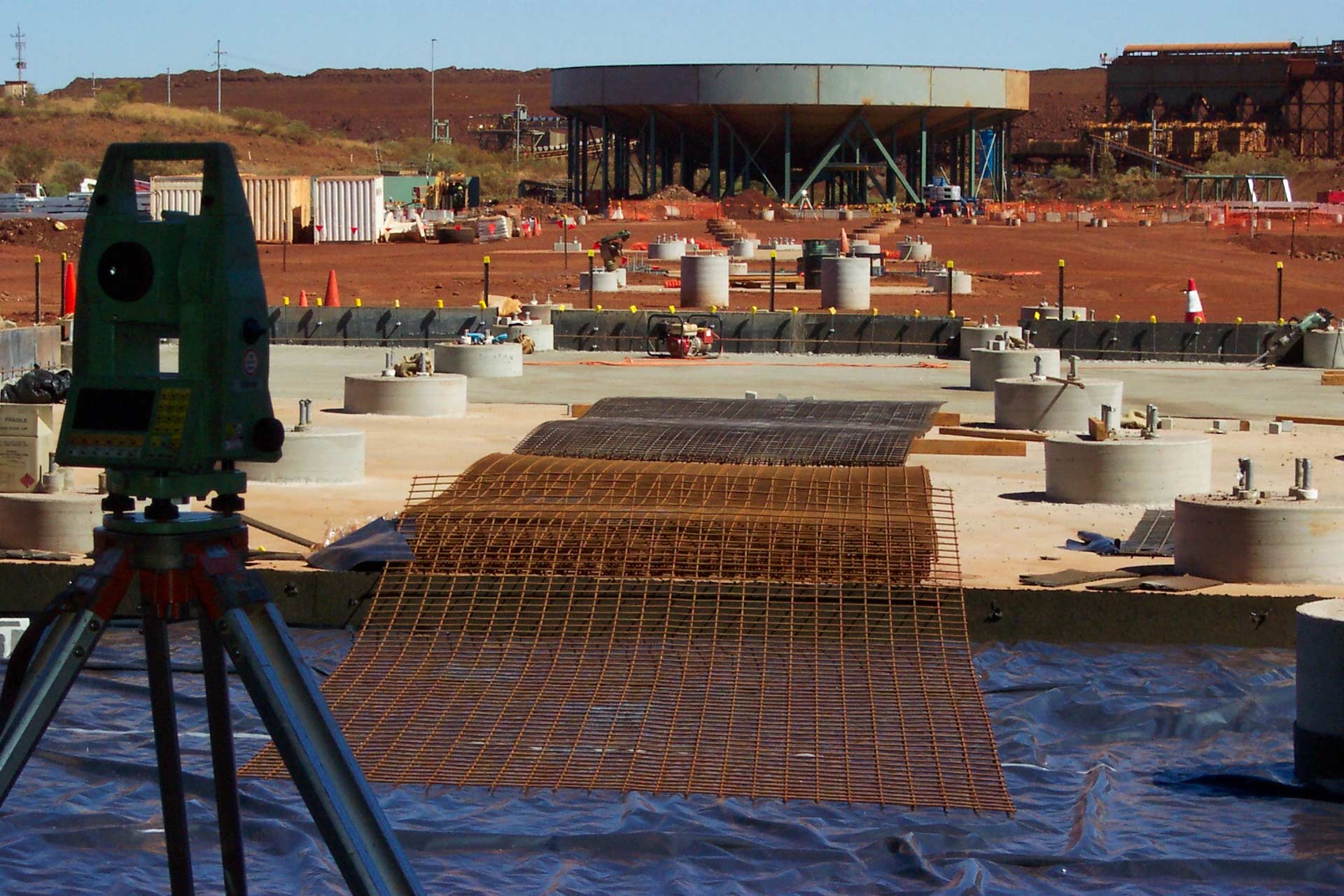

CONCRETE
During an accelerated construction program “getting out of the ground” on time and on budget sets the foundation for a successful project.
Small and Large Control Networks Grid Lines Height Datums
Concrete and Castin Item Set Out Detailed Earthworks Set Out
Height Control for Graded Slabs Bill of Quantity Assessment
As-built and Conformance Reports Settlement Monitoring

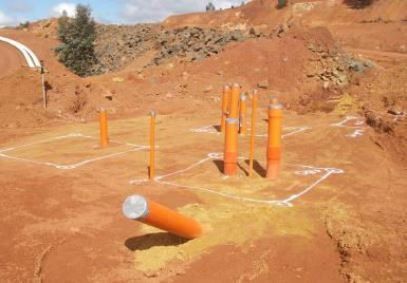

SERVICES
Protect your services by recording
the position before it’s too late.
Design Setting
Out Clash
Detection
As-built Recording 3DPosition
Services Compilations and Plans

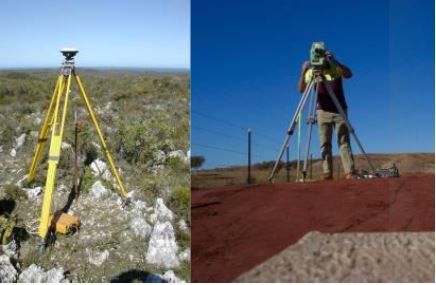

DETAIL & ENGINEERING SURVEYS
Whether it’s a feature survey for
residential development or engineering grade surveyto support future designs, Zone 50 can tailor a detail survey solution to suit your project.
Feature Surveys
Broad Acre Mapping
Engineering Detail Surveys
Pre-construction Condition Surveys
Mechanical Alignment Definition and Verification

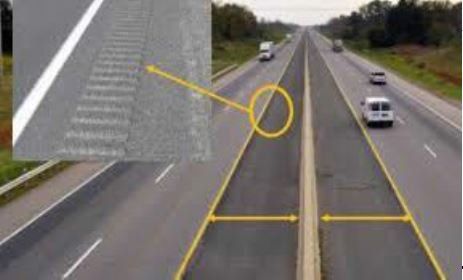

ROAD MARKING
Spotting for road marking is becoming a lost art. Zone 50 is
committed to ensuring setting out for Road Markings by others meet Australian Standards for the safety of all road users.
Existing Alignment Surveys
Centerline Spotting
Edge lines and Intersections
Current Marking Assessments

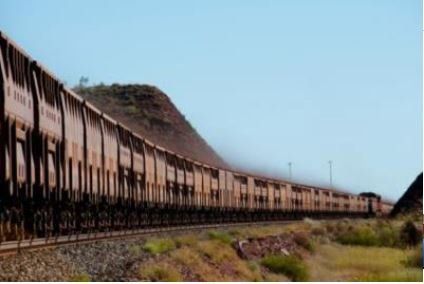

RAIL TRACK ALIGNMENT
When it comes to Rail Networks, miss-alignment in track equates to excessive wear of rail infrastructure and wagon bogie wheels.
Survey Control Networks
Existing Track As-built Surveys
Creation of Digital Track Alignments Precise Control of Track Position Calculation of Slew Lift Data for Tamping
Installation of Sw itch Infrastructure Earth works Formation Verification Track Reconstruction Survey Support New track Construction Survey Support
